Attribute - NumberPool

The NumberPool attribute kind enables the dynamic creation of a CoreNumberPool for the specific schema node and attribute rather than requiring users to define this after the schema is loaded.

Resource pool initial creation

NumberPool kind creates the CoreNumberPool resource manager during schema initialization.

Defining a NumberPool attribute

When defining a NumberPool attribute, you'll have to define extra parameters on the attribute to define the start_range and end_range for the CoreNumberPool resource manager.

We'll define a generic service schema that nodes will inherit from to provide a global service identifier among different schema node services.

# yaml-language-server: $schema=https://schema.infrahub.app/infrahub/schema/latest.json
---
version: "1.0"
generics:
  - name: Service
    namespace: Infra
    description: "Services"
    default_filter: name__value
    order_by:
      - name__value
    display_labels:
      - name__value
    attributes:
      - name: name
        kind: Text
        label: Name
        optional: false
        order_weight: 1
      - name: service_identifier
        kind: NumberPool
        read_only: true # Required
        parameters:
          start_range: 100
          end_range: 10000
nodes:
  - name: BackBoneService
    namespace: Infra
    description: "Backbone Service"
    label: "Backbone Service"
    icon: "carbon:container-services"
    inherit_from:
      - InfraService
    uniqueness_constraints:
      - ["circuit_id__value", "internal_circuit_id__value"]
    attributes:
      - name: circuit_id
        kind: Text
        label: Circuit ID
        optional: false
        order_weight: 3
      - name: internal_circuit_id
        kind: Text
        label: Internal Circuit ID
        optional: false
        order_weight: 2
    relationships:
      - name: provider
        cardinality: one
        peer: OrganizationProvider
        optional: false
        kind: Attribute
      - name: site_a
        label: Site A
        cardinality: one
        peer: LocationSite
        optional: false
        identifier: infrabackboneservice__location_site_a
        kind: Attribute
        order_weight: 4
      - name: site_b
        label: Site B
        cardinality: one
        peer: LocationSite
        optional: false
        identifier: infrabackboneservice__location_site_b
        kind: Attribute
        order_weight: 5

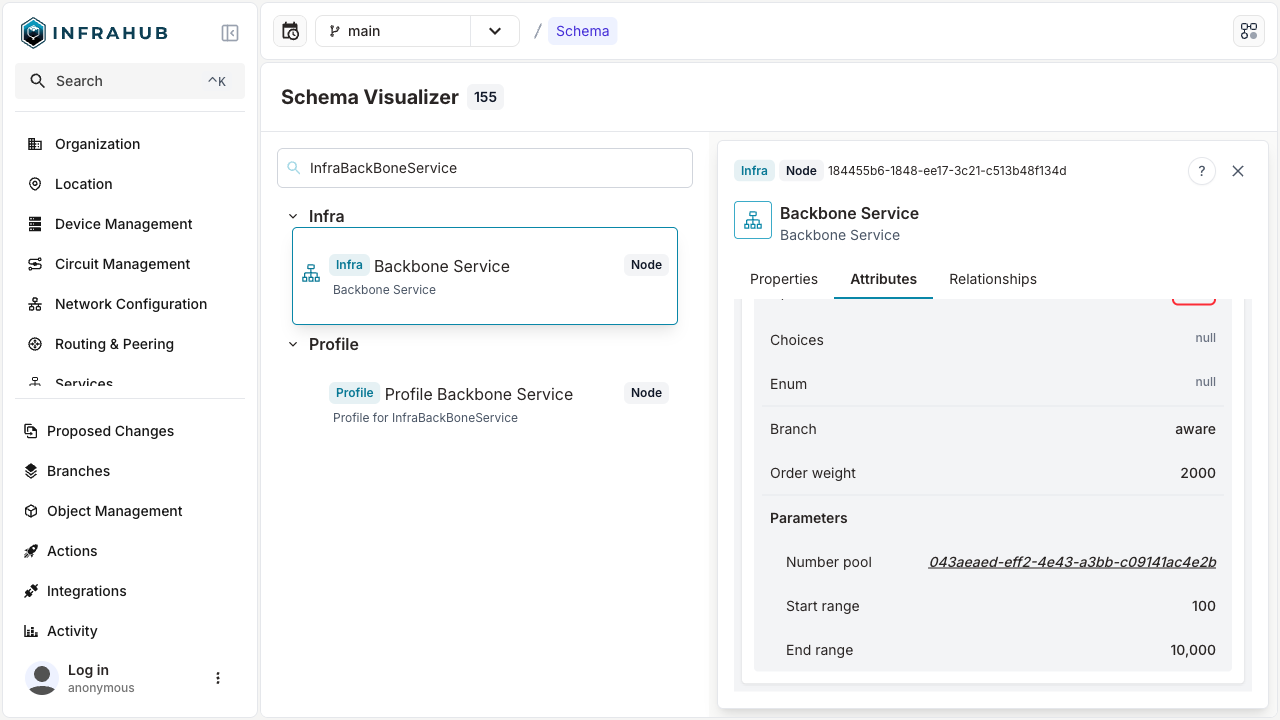

We can view the schema in the Schema Visualizer.

Viewing the resource manager

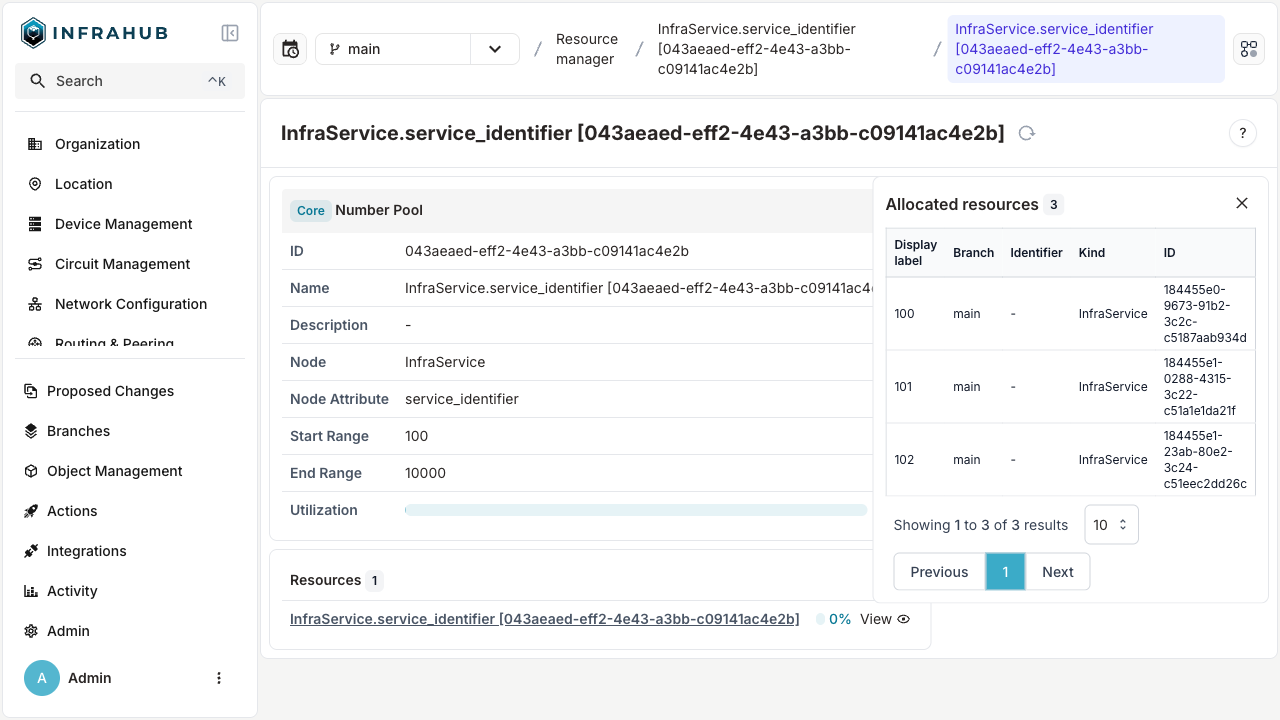

Once we create an initial InfraBackBoneService, we can navigate to the resource manager page and view the details of the created resource manager.

The naming of the resource manager will be Kind.attribute_name [uuid].

Updating Parameters (Start/End Range)

To update the parameters of a NumberPool attribute requires performing a schema update.

Deleting the resource manager

To remove the resource manager, the attribute must be removed by defining state: absent on the attribute in the schema. The resource manager will then be removed during the schema loading.

# yaml-language-server: $schema=https://schema.infrahub.app/infrahub/schema/latest.json
---
version: "1.0"
generics:
  - name: Service
    namespace: Infra
    description: "Services"
    default_filter: name__value
    order_by:
      - name__value
    display_labels:
      - name__value
    attributes:
      - name: name
        kind: Text
        label: Name
        optional: false
        order_weight: 1
      - name: service_identifier
        state: absent
        kind: NumberPool
        read_only: true # Required
        parameters:
          start_range: 100
          end_range: 10000
